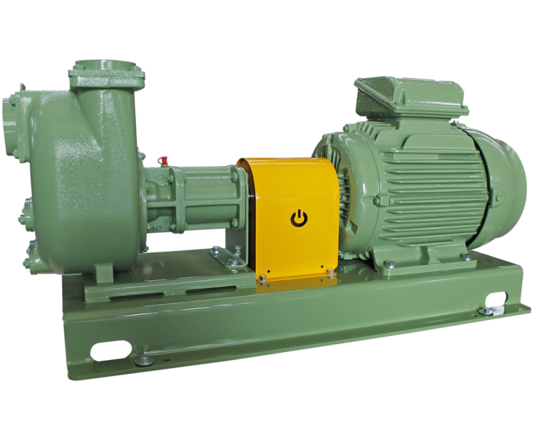

GRTACL225 D5608 PUMP

A 300 mm high-capacity pump package for major dewatering, bypass, and transfer projects. The large impeller and high drive power support very high flow rates with solids tolerance. This unit is intended for very large dewatering, stormwater, emergency bypass, and industrial transfer duties, with a large impeller and 125 HP drive supporting exceptional flow while maintaining solids passage.

Product Specifications

• Unit: Each
• Availability: Quote request
• Flow range: 300 m3/h
• Pressure rating: Maximum head 44 m
• Material: Large-frame industrial pump package
• Lead time: Quote after duty review
• Inlet / outlet: 300 m3/h
• Impeller size: 457 mm
• Maximum solid size: 76 mm
• Maximum flow: 1275 m3/h
• Maximum head: 44 m
• Speed: 2150 RPM
• Shaft size: 69.9 mm
• Drive size: 125 HP
• Cubic: 1100
