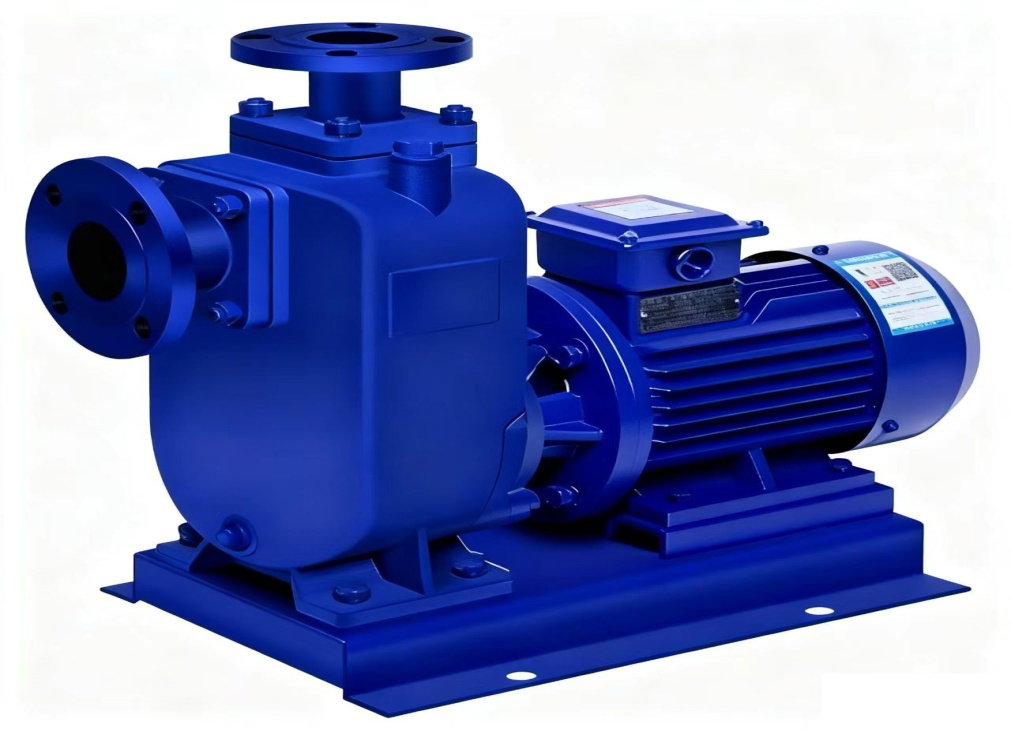

MTRACL430 R2759 PUMP

Solids handling of up to 72mm. Industrial self-priming pump for high-capacity dewatering and solids-bearing transfer. The large ports and strong drive rating make it suitable for demanding process and field service requirements.

Product Specifications

• Unit: Each
• Availability: Quote request
• Flow range: Max. flow 40 m³/h
• Pressure rating: Max. discharge pressure 1.5 bar
• Material: Heavy-duty flanged pump construction
• Lead time: Quote after duty review
• Max. temperature: 120 °C
• Max. particle size: 25 mm
• Connections: 2 in
• Max. drive power: 2.2 kW
• Impeller size: 220 mm
• Viscosity: 50 cSt
• Pipe connections (general range): DN 40 – DN 300
• Self-priming: up to 7.5 m w.c.
• Capacity (general range): up to 417 l/s (25,000 l/min, 1,500 m³/h)
• Head (general range): up to 70 m w.c.
• Diameter solids (general range): up to 75 mm Ø
